Endpoints

https://api.nicelink.xyz/sharp

The /jimp endpoint is now an alias of /sharp, but might be removed in favour of /sharp.

sharp.js is the library used for image manipulation. In general the features supported by Sharp.js are supported by this API.

Get an image

Get image

curl -X get \
  https://api.nicelink.xyz/sharp/transparent.png

{output;
  {file;buffer:{jget;{request;https://api.nicelink.xyz/sharp/transparent.png};body}};transparent.png}
}
{//;More likely would be to just display the URL}
https://api.nicelink.xyz/sharp/transparent.png

Response (Image Buffer)

GET https://api.nicelink.xyz/sharp/:imageName

Any image stored can be retrieved by using the name of the image provided by an endpoint like /store.

Analyze image

Example request

curl -X POST -H "Content-Type: application/json" \
    -d '{"background": "https://example.com/image.png"}' \
    https://api.nicelink.xyz/sharp

{set;~payload;{json;{

  "background": "https://example.com/image.png"
}}}

{jget;{request;https://api.nicelink.xyz/sharp;{jset;;method;POST};{get;~payload}};body}

JSON response:

{
  "errors" : ["Invalid background image"],
  "warnings" : [],
  "children" : []
}

POST https://api.nicelink.xyz/jimp

Request body is an ImageObject

Generate image

Example request

curl -X POST -H "Content-Type: application/json" \
  -d {"background": "https://api.nicelink.xyz/sharp/transparent.png", "text": [{"text": "Hello world!"}], "crop": "auto"} \
  https://api.nicelink.xyz/sharp/process

{set;~json;{json;{
    "background": "https://api.nicelink.xyz/sharp/transparent.png",
    "text": [
        {
            "text": "Hello world!"
        }
    ],
    "crop": "auto"
}}}
{set;~response;{request;https://api.nicelink.xyz/sharp/store;{jset;;method;POST};{get;~json}}}

{file;buffer:{jget;~response;body};image.png}

Returns an image

POST https://api.nicelink.xyz/sharp/process

Request body must be an ImageObject

This endpoints directly returns the generated image

Store image

Example request

curl -X POST -H {"Content-Type: application/json"} \
  -d {"background": "https://api.nicelink.xyz/sharp/transparent.png", "cacheDuration": 7, "text": [{"text": "Hello world!"}], "crop": "auto"} \
  https://api.nicelink.xyz/sharp/store

{set;~json;{json;{
  "background": "https://api.nicelink.xyz/sharp/transparent.png",
  "cacheDuration": 7,
  "text": [
    {
      "text": "Hello world!"
    }
  ],
  "crop": "auto"
}}}
{set;~response;{request;https://api.nicelink.xyz/sharp/store;{jset;;method;POST};{get;~json}}}

{jget;~response;body}

JSON Response:

{
  "root" : "https://api.nicelink.xyz/sharp/",
  "path" : "d7596506-9ee8-4a42-8cea-b51670378920.png",
  "url" : "https://api.nicelink.xyz/sharp/d7596506-9ee8-4a42-8cea-b51670378920.png",
  "errors" : [],
  "warnings" : [],
  "children" : []
}

POST https://api.nicelink.xyz/sharp/store

Request body must be an ImageObject

This endpoint allows you to store an image for a determined amount of time (cacheDuration). GETting an image extends the duration it's stored for by cacheDuration.

After cacheDuration days have passed since the last access the image will be deleted. GETting the image after this will re-generate the image and re-store it. 90 days after its last access the image will be permanently gone.

Input Bodies

Image Object

Example actions:

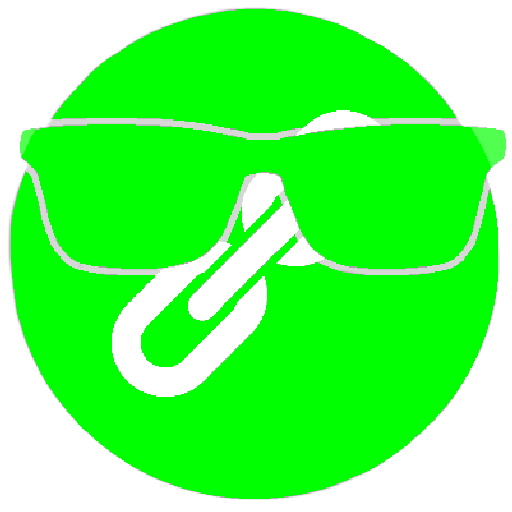

Replacing a colour:

{
  "bg": "https://api.nicelink.xyz/docs/images/logo.png",
  "replaceColor": {
    "target" : "#000000",
    "replace" : "#00FF00",
    "delta" : 50
  }
}

Response image

Hello world:

{
    "text": [
        {
            "text": "Hello world!"
        }
    ],
    "crop": "auto"
}

Response image

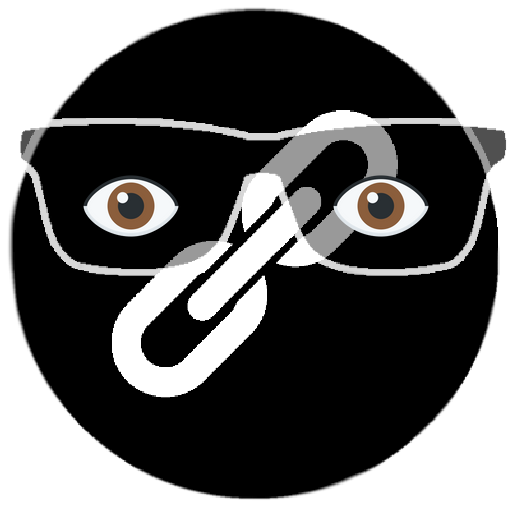

Add some eyes to the logo:

{
    "bg": "https://api.nicelink.xyz/docs/images/logo.png",
    "images": [
        {
            "bg": "https://api.nicelink.xyz/sharp/edcd1b62-911a-4b5b-804a-a82d72b90060.png",
            "align": "center",
            "x": -125,
            "y": -50,
            "width": 100
        },
        {
            "bg": "https://api.nicelink.xyz/sharp/edcd1b62-911a-4b5b-804a-a82d72b90060.png",
            "align": "center",
            "x": 125,
            "y": -50,
            "width": 100
        }
    ]
}

Response image

Property Alias Type Default Description
background bg string transparent.png URL of the background to use.
cacheDuration number 7 When using the /store endpoint this will determine the amount of days the image is stored for. Maximum of 30 days.
width w number Original width Width of the image.
height h number Original height Height of the image.
opacity o number 100 Opacity of the image ranging from 0-100
rotate r number 0 Clockwise rotation of the image in degrees.
shape s string undefined Shape of the image. Can be circle.
flip number undefined Flips the image horizontally or vertically. Accepted values are 1 (horizontal flip), 2 (vertical flip) and 3 (horizontal + vertical flip)
images children ChildObject[] [] Array with ChildObjects.
text txt TextObject|TextObject[] undefined Renders text on the image
crop CropObject|number|"auto" undefined Crops the image based on the parameters provided. Argument can be a number in which case it will crop from x = 0 and y = 0 until x = number and y = number. Or the argument can be a CropObject or "auto" which trims the transparent region around the image.
replacecolor ReplaceColorObject undefined Replaces a certain colour with another colour

Child Object

Example action:

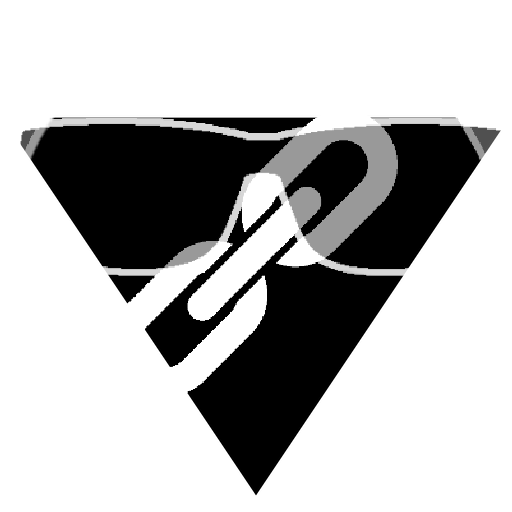

Creating a triangle shape

{
    "bg": "https://api.nicelink.xyz/docs/images/logo.png",
    "images": [
        {
            "bg": "https://api.nicelink.xyz/sharp/958d2e27-2c35-421b-8643-03b237e428c1.png",
            "rotate": 180,
            "align": "center",
            "y": 50,
            "blendMode": "dstIn",
            "size": "contain"
        }
    ]
}

Response image

A ChildObject supports all the properties of InputBody, in addition to the following properties:

Property Alias Type Default Description
x number 0 Horizontal position of the image on the parent image.
y number 0 Vertical position of the image on the parent image.
alignment align string undefined Alignment of the image on the parent image. Can be any of the modes listed under "Supported alignment modes". If this property is provided in combination with x and/or y, x and y will be the offset.
size string undefined Can be contain. contain scales the child image down so it fits inside the parent element.
blendMode string srcOver Blend mode to use when composting the child image on the parent image. A list of blend modes can be found below under Blend modes

Text Object

Example actions:

Hello world

{
    "text": [
        {
            "text": "Hello world!",
            "color": "white",
            "size": "100px"
        }
    ],
    "crop": "auto"
}

Response image

Hello world, but with a cool font

{
    "text": [
        {
            "text": "Hello world!",
            "font": "DS Uncial Funny Hand",
            "color": "white",
            "size": "100px"
        }
    ],
    "crop": "auto"
}

Response image

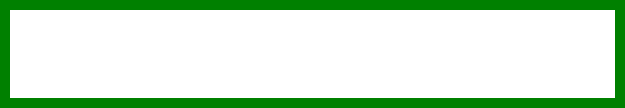

Hello world in a box

{
    "text": [
        {
            "text": "Hello world!",
            "color": "white",
            "size": "100px",
            "borderWidth": 10,
            "padding": 5,
            "borderColor": "green"
        }
    ],
    "crop": "auto"
}

Response image

Hello world, yellow background

{
    "text": [
        {
            "text": "Hello world!",
            "color": "black",
            "size": "100px",
            "bgColor": "yellow",
            "padding": 5
        }
    ],
    "crop": "auto"
}

Response image

Property Alias Type Default Description
x number 0 x coordinate/offset of the text block.
y number 0 y coordinate/offset of the text block.
align string top-left Alignment mode of the text block. Alignment modes can be seen in the Supported alignment modes section
size number 30 Pixel size of the text.
font FONTSTYLE sans-serif Supported fonts are listed at /sharp/fonts. Each support font family has an array of supported font styles.
textAlign string left Alignment mode of the text inside the text block. This is not the same as the align property.
textColor color string black Color of the text.
backgroundColor bgColor string transparent Color of the background.
lineSpacing number 0 Amount of spacing between lines.
maxWidth number width of parent - x Max width of the text block. Defaults to the width of the parent image minus the x offset.
strokeWidth number 0 Width of the text stroke in pixels.
strokeColor string white Color of the text stroke.
When using a stroke, the padding might need to be increased to avoid cutting off.
padding{Side} padding number 0 Padding in pixels on {Side}, where {Side} can be Left, Right, Top, Bottom or nothing for all sides
padding property is only used for a side if the side-specific property is not provided.
border{Side}Width borderWidth number 0 Width of the border on {Side}. Uses same logic as padding{Side}
borderColor string black Color of the border.

Crop Object

Example Object

{
  "x": 30,
  "y": 12,
  "w": 1000
}
Property Type Default Description
x number 0 X position to start the crop at
y number 0 Y position to start the crop at
w number Image width The width of the crop region
h number Image height The height of the crop region

Replace Color Object

Example Object

{
  "target": "#FF0000",
  "replace": "#00FF00"
}
Property Type Default Description
target string Target hex colour
replace string Replacement hex colour
delta number 2.3 The deltaE value to use, more info here

Supported alignment modes

top-left top-middle top-right
left center right
bot-left bot-middle bot-right

Blend modes

For more information about the blend modes visit libvips blendmode and cairographics compositing operators

Supported modes are: srcOver, srcIn, srcOut, srcAtop, dstIn, dstOut, dstAtop, dstOver, hardLight, softLight, colourDodge, colourBurn, add, screen, overlay, lighten, darken, multiply, difference, exclusion, clear, source, saturate, xor and dest
